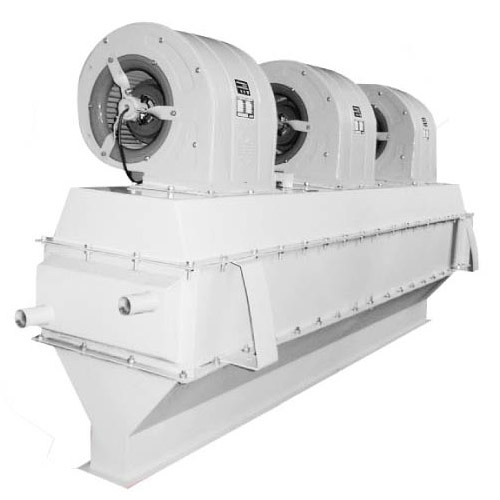

Centrifugal Hot-water Heating Air Curtain
Centrifugal Hot-water Heating Air Curtain
All-metal housing, advanced fire resistance, easy installation and simple maintenance.
Applied water heating method, energy saving, super safety.
The air curtain adopts centrifugal electrical motor with strong air delivery, high air pressure, strong wind force.
The heat exchanger adopts BB16A copper pipe with high thermal efficiency.
The air curtain is suitable for industrial and mining establishments, large-scale marketplaces, public location, etc.
Various body specifications: 900mm、1200mm、1500mm、1800mm、2000mm.
RM离心式低温热水风幕机 |
型号 | 尺寸 | 频率 | 电压 | 电机功率 | 进出温差 | 散热量 | 风速 | 水温 | 风量 | 管径 |
| mm | Hz | V | kW | ℃ | cal | m/s | ℃ | m3/h | inch. |
RM-L/W-2010TS | 1060×510×820 | 50～60 | 380 | 0.25×2 | ≥35 | 33000 | 8-10 | 60-45 | 3000 | 1.2 |
RM-L/W-2012TS | 1260×510×820 | 50～60 | 380 | 0.32×2 | ≥35 | 39000 | 8-10 | 60-45 | 4800 | 1.2 |
RM-L/W-2015TS | 1560×510×820 | 50～60 | 380 | 0.37×2 | ≥35 | 49000 | 8-10 | 60-45 | 5200 | 1.5 |
RM-L/W-2018TS | 1860×510×820 | 50～60 | 380 | 0.32×3 | ≥35 | 59000 | 8-10 | 60-45 | 7200 | 1.5 |
RM-L/W-2020TS | 2060×510×820 | 50～60 | 380 | 0.37×3 | ≥35 | 66000 | 8-10 | 60-45 | 7800 | 2 |
RM-L/W-2025TS | 2560×510×820 | 50～60 | 380 | 0.37×4 | ≥35 | 82000 | 8-10 | 60-45 | 10400 | 2.5 |
RM-L/W-2510TS | 1060×590×890 | 50～60 | 380 | 0.8×1 | ≥35 | 34000 | 8-10 | 60-45 | 3100 | 1.2 |
RM-L/W-2512TS | 1260×590×890 | 50～60 | 380 | 0.55×2 | ≥35 | 40000 | 9-12 | 60-45 | 5600 | 1.2 |
RM-L/W-2515TS | 1560×590×890 | 50～60 | 380 | 0.8×2 | ≥35 | 52000 | 9-12 | 60-45 | 6200 | 1.5 |
RM-L/W-2518TS | 1860×590×890 | 50～60 | 380 | 0.55×3 | ≥35 | 62000 | 9-12 | 60-45 | 6200 | 1.5 |
RM-L/W-2520TS | 2060×590×890 | 50～60 | 380 | 0.8×3 | ≥35 | 70000 | 9-12 | 60-45 | 8400 | 2 |
RM-L/W-2525TS | 2560×590×890 | 50～60 | 380 | 0.8×4 | ≥35 | 86000 | 9-12 | 60-45 | 9100 | 2.5 |
RM离心式高温热水风幕机 |
型号 | 尺寸 | 频率 | 电压 | 电机功率 | 进出温差 | 散热量 | 风速 | 水温 | 风量 | 管径 |
| mm | Hz | V | kW | ℃ | cal | m/s | ℃ | m3/h | inch. |
RM-L/W-2010S | 1060×510×820 | 50～60 | 380 | 0.25×2 | ≥40 | 35000 | 8-10 | 90-70 | 3000 | 1.2 |
RM-L/W-2012S | 1260×510×820 | 50～60 | 380 | 0.32×2 | ≥40 | 42000 | 8-10 | 90-70 | 4800 | 1.2 |
RM-L/W-2015S | 1560×510×820 | 50～60 | 380 | 0.37×2 | ≥40 | 52000 | 8-10 | 90-70 | 5200 | 1.5 |
RM-L/W-2018S | 1860×510×820 | 50～60 | 380 | 0.32×3 | ≥40 | 63000 | 8-10 | 90-70 | 7200 | 1.5 |
RM-L/W-2020S | 2060×510×820 | 50～60 | 380 | 0.37×3 | ≥40 | 70000 | 8-10 | 90-70 | 7800 | 2 |
RM-L/W-2025S | 2560×510×820 | 50～60 | 380 | 0.37×4 | ≥40 | 88000 | 8-10 | 90-70 | 10400 | 2.5 |
RM-L/W-2510S | 1060×590×890 | 50～60 | 380 | 0.8×1 | ≥40 | 35000 | 8-10 | 90-70 | 3100 | 1.2 |
RM-L/W-2512S | 1260×590×890 | 50～60 | 380 | 0.55×2 | ≥40 | 44000 | 9-12 | 90-70 | 5600 | 1.2 |
RM-L/W-2515S | 1560×590×890 | 50～60 | 380 | 0.8×2 | ≥40 | 55000 | 9-12 | 90-70 | 6200 | 1.5 |
RM-L/W-2518S | 1860×590×890 | 50～60 | 380 | 0.55×3 | ≥40 | 66000 | 9-12 | 90-70 | 8400 | 1.5 |
RM-L/W-2520S | 2060×590×890 | 50～60 | 380 | 0.8×3 | ≥40 | 74000 | 9-12 | 90-70 | 9100 | 2 |
RM-L/W-2525S | 2560×590×890 | 50～60 | 380 | 0.8×4 | ≥40 | 95000 | 9-12 | 90-70 | 12400 | 2.5 |
RM离心式蒸汽加热风幕机 |
型号 | 尺寸 | 频率 | 电压 | 电机功率 | 进出温差 | 散热量 | 风速 | 蒸汽 | 风量 | 管径 |
| mm | Hz | V | kW | ℃ | cal | m/s | Mpa | m3/h | inch. |
RM-L/W-2010Q | 1060×510×820 | 50～60 | 380 | 0.25×2 | ≥40 | 35000 | 8-10 | 0.4 | 3000 | 1.2 |
RM-L/W-2012Q | 1260×510×820 | 50～60 | 380 | 0.32×2 | ≥40 | 42000 | 8-10 | 0.4 | 4800 | 1.2 |
RM-L/W-2015Q | 1560×510×820 | 50～60 | 380 | 0.37×2 | ≥40 | 52000 | 8-10 | 0.4 | 5200 | 1.5 |
RM-L/W-2018Q | 1860×510×820 | 50～60 | 380 | 0.32×3 | ≥40 | 63000 | 8-10 | 0.4 | 7200 | 1.5 |
RM-L/W-2020Q | 2060×510×820 | 50～60 | 380 | 0.37×3 | ≥40 | 70000 | 8-10 | 0.4 | 7800 | 2 |
RM-L/W-2025Q | 2560×510×820 | 50～60 | 380 | 0.37×4 | ≥40 | 88000 | 8-10 | 0.4 | 10400 | 2.5 |
RM-L/W-2510Q | 1060×590×890 | 50～60 | 380 | 0.8×1 | ≥40 | 35000 | 8-10 | 0.4 | 3100 | 1.2 |
RM-L/W-2512Q | 1260×590×890 | 50～60 | 380 | 0.55×2 | ≥40 | 44000 | 9-12 | 0.4 | 5600 | 1.2 |
RM-L/W-2515Q | 1560×590×890 | 50～60 | 380 | 0.8×2 | ≥40 | 55000 | 9-12 | 0.4 | 6200 | 1.5 |
RM-L/W-2518Q | 1860×590×890 | 50～60 | 380 | 0.55×3 | ≥40 | 66000 | 9-12 | 0.4 | 8400 | 1.5 |
RM-L/W-2520Q | 2060×590×890 | 50～60 | 380 | 0.8×3 | ≥40 | 74000 | 9-12 | 0.4 | 9100 | 2 |
RM-L/W-2525Q | 2560×590×890 | 50～60 | 380 | 0.8×4 | ≥40 | 95000 | 9-12 | 0.4 | 12400 | 2.5 |
RM离心式空气幕 |
型号 | 尺寸 | 额定频率 | 额定电压 | 电机功率 | 风速 | 风量 |
| mm | Hz | V | kW | m/s | m3/h |
RM-L/W-2010 | 1060×510×820 | 50～60 | 380 | 0.25×2 | 8-10 | 3000 |
RM-L/W-2012 | 1260×510×820 | 50～60 | 380 | 0.32×2 | 8-10 | 4800 |
RM-L/W-2015 | 1560×510×820 | 50～60 | 380 | 0.37×2 | 8-10 | 5200 |
RM-L/W-2018 | 1860×510×820 | 50～60 | 380 | 0.32×3 | 8-10 | 7200 |
RM-L/W-2020 | 2060×510×820 | 50～60 | 380 | 0.37×3 | 8-10 | 7800 |
RM-L/W-2025 | 2560×510×820 | 50～60 | 380 | 0.37×4 | 8-10 | 10400 |
RM-L/W-2510 | 1060×590×890 | 50～60 | 380 | 0.8×1 | 8-10 | 3100 |
RM-L/W-2512 | 1260×590×890 | 50～60 | 380 | 0.55×2 | 9-12 | 5600 |
RM-L/W-2515 | 1560×590×890 | 50～60 | 380 | 0.8×2 | 9-12 | 6200 |
RM-L/W-2518 | 1860×590×890 | 50～60 | 380 | 0.55×3 | 9-12 | 8400 |
RM-L/W-2520 | 2060×590×890 | 50～60 | 380 | 0.8×3 | 9-12 | 9100 |
RM-L/W-2525 | 2560×590×890 | 50～60 | 380 | 0.8×4 | 9-12 | 12400 |
