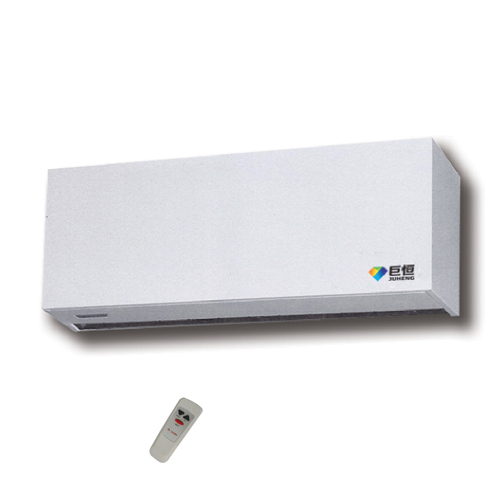

Centrifugal high power electric air curtain

Detail

High-power PTC heated centrifugal air curtain machine:


1, the body of the first steel cold plate stamping; the whole spray plastic; long time use will not rust.


2, the machine adopts centrifugal fan; air volume than the traditional cross-flow air curtain machine more than double; the highest suitable for 4 metres door height.


3, microcomputer control, free to switch between ordinary wind and hot air; a double choice


4, the use of surface charged PTC heaters, with high safety performance, fast heating and automatic thermostat function, the formation of a good hot air curtain wall.


5、 High-power heating capacity, stable performance, low power consumption, rapid heating, can work normally at -18 ° C; suitable for cold areas.


6、 Heater with overheating protection device, effective protection of the normal use of the product and energy saving.


7、 Close the hot air, with automatic time-delay protection device, help to protect the internal components of the equipment premature aging.




型号

尺寸

额定频率

额定电压

输入功率

风速m/s

风量

噪音

Mm

Hz

V

KW

H

L

M3/h

dB

RFM-4009D/Y

900×350×240

50-60

220-380

10

14

12

2000

<57

RFM-4012D/Y

1200×350×240

50-60

220-380

14

14

12

2800

<58

RFM-4015D/Y

1500×350×240

50-60

220-380

18

14

12

3680

<59
