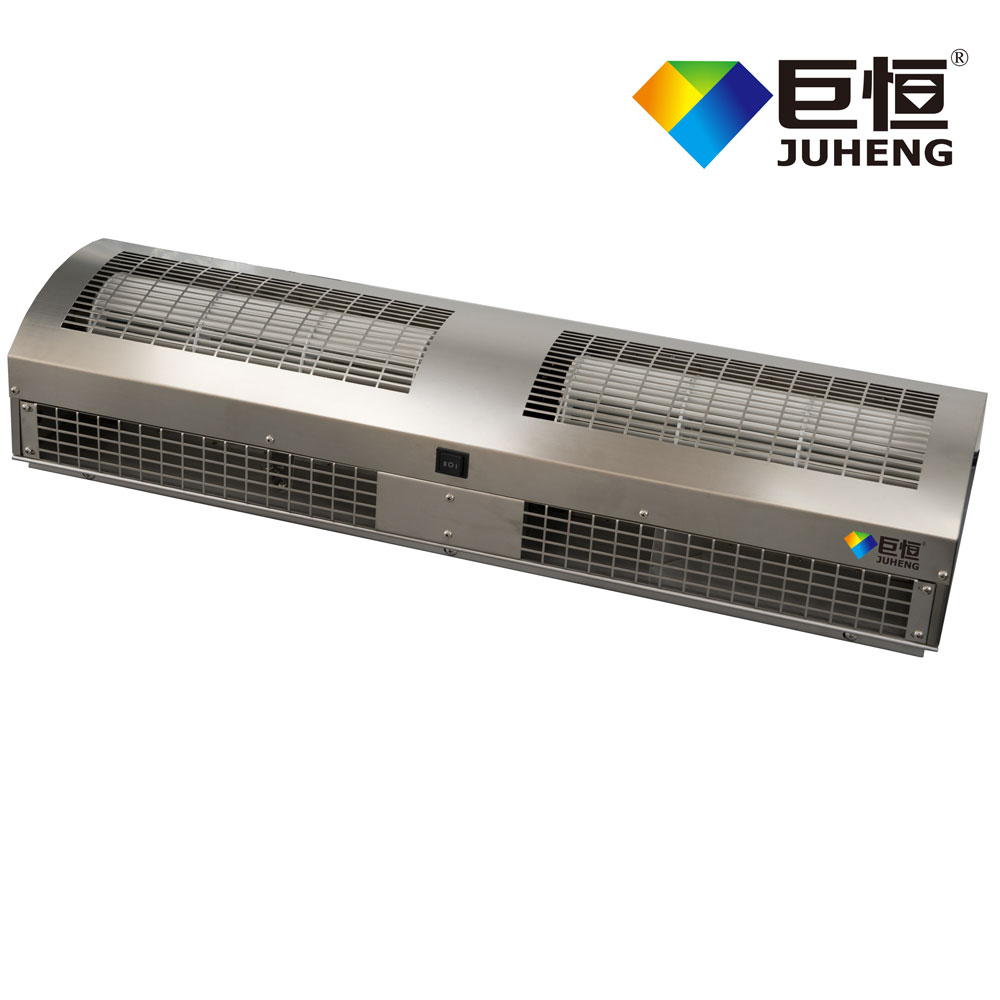

Natural wind air curtain
1.Special design of air deflection vane enables to adjust the air direction easily. Two speeds contolled by the remote control or key switch.
2.Pure copper high speed motor, stable performance, running for more than 5000 hours without failure.
3.Patent design of arc shape appearance,compact & fashion. By aluminum cover and combine with high precise ABS,never rusty and lasting clean; Lightweight compact body, about 40% lighter than the normal air curtain, suitable for glass, marble doorway.
4.Adopt non-isometric quiet impellers to avoid the maximum noise frequency area. Combined with scientific airflow design, it can redece noise effectively under stable operation.
5.Application: for the door of cafeteria, bakery, waiting room, restaurant, retail shop, station etc.
6.Mounting height:2.5-3M
7.The specifacation
Model | Size | Frequency | Voltage | Model | Wind speed m/s | Wind quantity | Noise |
Mm | Hz | Ac/V | H | L | m3/h | dB |
FM-125-09B | 900×180×220 | 50 | 220 | 85 | 12 | 9 | 850-1320 | ≤57 |
FM-125-12B | 1200×180×220 | 50 | 220 | 95 | 12 | 9 | 980-1780 | ≤58 |
FM-125-15B | 1500×180×220 | 50 | 220 | 105 | 12 | 9 | 1100-2350 | ≤59 |
FM-125-18B | 1800×180×220 | 50 | 220 | 155 | 12 | 9 | 1850-2900 | ≤61 |
FM-125-09B/Y | 900×180×220 | 50 | 220 | 85 | 12 | 9 | 850-1320 | ≤57 |
FM-125-12B/Y | 1200×180×220 | 50 | 220 | 95 | 12 | 9 | 980-1780 | ≤58 |
FM-125-15B/Y | 1500×180×220 | 50 | 220 | 105 | 12 | 9 | 1100-2350 | ≤59 |
FM-125-18B/Y | 1800×180×220 | 50 | 220 | 155 | 12 | 9 | 1850-2900 | ≤61 |
